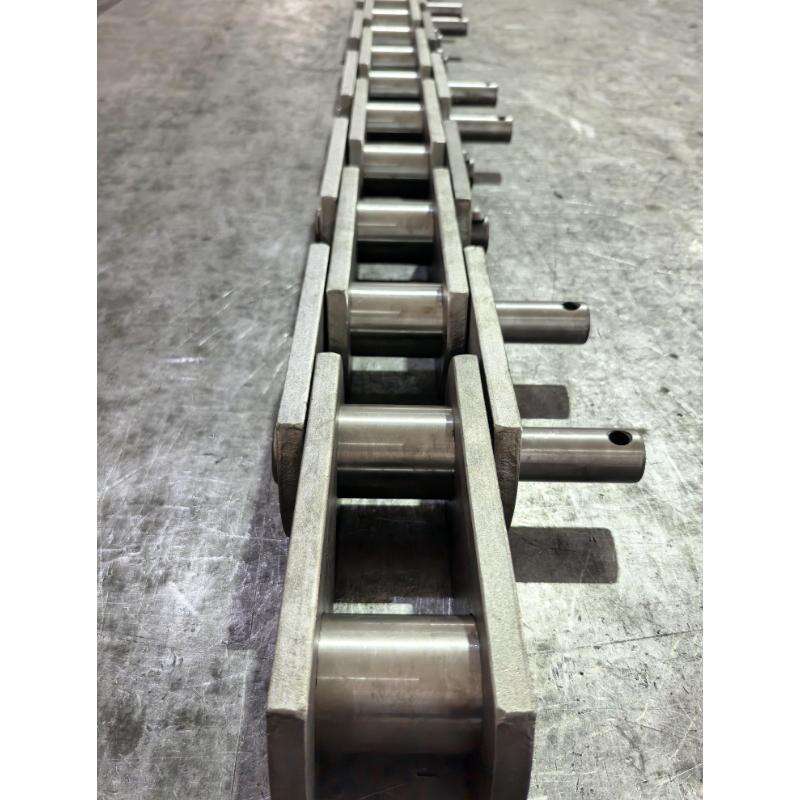

Catena serie WDH habet omnes partes per duratas . Sunt specialiter conceptae pro oneribus et conditionibus operationis impositis a servitio trahentis transporteris
| Numerus catenae | Media Altitudo | E(mm) | Pars | Pinna | F(mm) | Min. Fortitudo Ultima (KN) | ||
| T(mm) | H(mm) | D(mm) | A(mm) | |||||
| WDH102 | 127.0 | 162.00 | 9.70 | 38.10 | 19.05 | 232.50 | 197.00 | 226.7 |
| WDH104 | 152.4 | 104.78 | 9.70 | 38.10 | 19.05 | 173.30 | 136.53 | 226.7 |
| Wdh110 | 152.4 | 228.60 | 9.70 | 38.10 | 19.05 | 296.00 | 260.50 | 235.0 |
| WDH113 | 152.4 | 228.60 | 12.70 | 38.10 | 22.23 | 311.50 | 270.20 | 297.8 |
| WDH120 | 152.4 | 222.25 | 12.70 | 50.80 | 22.23 | 301.60 | 260.35 | 311.5 |
| WDH112 | 203.2 | 228.60 | 9.70 | 38.10 | 19.05 | 296.00 | 260.50 | 250.0 |
| WDH116 | 203.2 | 330.20 | 9.53 | 44.45 | 19.05 | 395.00 | 358.78 | 250.0 |
| WDH118 | 203.2 | 336.55 | 12.70 | 50.80 | 22.35 | 425.45 | 377.90 | 400.5 |
| WDH480 | 203.2 | 279.40 | 12.70 | 50.80 | 22.23 | 366.90 | 323.85 | 311.5 |
| WDH480XHD | 203.2 | 279.40 | 15.88 | 50.80 | 25.40 | 380.85 | 330.20 | 543.0 |
| Numerus catenae | Media Altitudo | E(mm) | Pars | Pinna | F(mm) | Min. Fortitudo Ultima (KN) | ||
| T(mm) | H(mm) | D(mm) | A(mm) | |||||
| WDH102 | 127.0 | 162.00 | 9.70 | 38.10 | 19.05 | 232.50 | 197.00 | 226.7 |
| WDH104 | 152.4 | 104.78 | 9.70 | 38.10 | 19.05 | 173.30 | 136.53 | 226.7 |
| Wdh110 | 152.4 | 228.60 | 9.70 | 38.10 | 19.05 | 296.00 | 260.50 | 235.0 |
| WDH113 | 152.4 | 228.60 | 12.70 | 38.10 | 22.23 | 311.50 | 270.20 | 297.8 |
| WDH120 | 152.4 | 222.25 | 12.70 | 50.80 | 22.23 | 301.60 | 260.35 | 311.5 |
| WDH112 | 203.2 | 228.60 | 9.70 | 38.10 | 19.05 | 296.00 | 260.50 | 250.0 |
| WDH116 | 203.2 | 330.20 | 9.53 | 44.45 | 19.05 | 395.00 | 358.78 | 250.0 |
| WDH118 | 203.2 | 336.55 | 12.70 | 50.80 | 22.35 | 425.45 | 377.90 | 400.5 |
| WDH480 | 203.2 | 279.40 | 12.70 | 50.80 | 22.23 | 366.90 | 323.85 | 311.5 |
| WDH480XHD | 203.2 | 279.40 | 15.88 | 50.80 | 25.40 | 380.85 | 330.20 | 543.0 |
